Parts Tray Generator

Generate a STEP file of a compartment storage tray (parts tray) by specifying outer dimensions, rows, columns, wall thickness, divider thickness, and corner radius.

Shape Grid-divided tray Division Up to 20 × 20 Bottom Integral with wall
🔍 View 3D Preview First
SAMPLE
STATIC · DEFAULT-VALUE MODEL

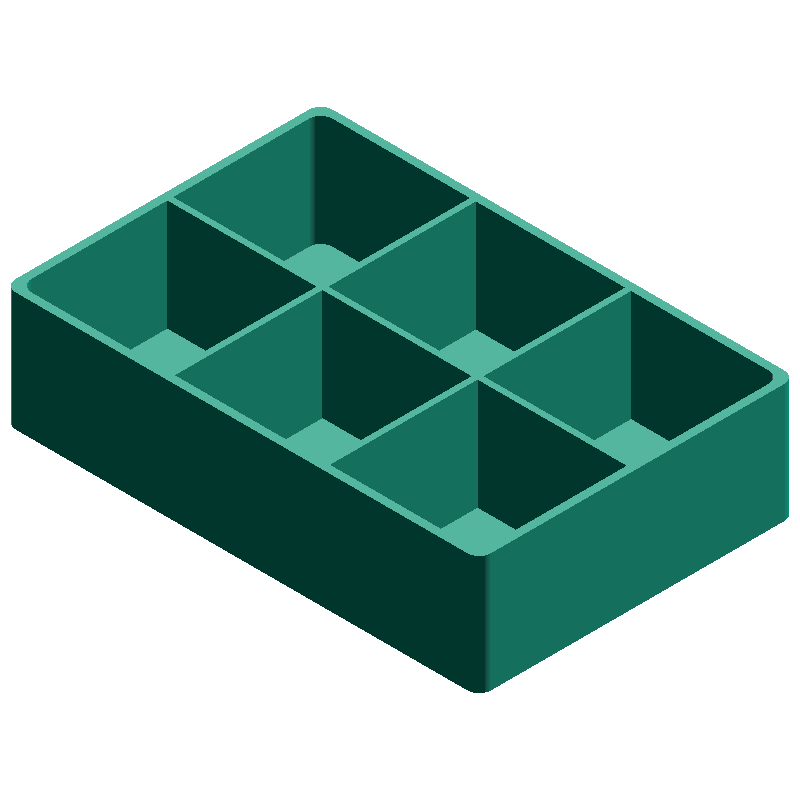

● SAMPLE IMAGE
VIEW · ISO
120×80 · h30 · 2×3
PARTS TRAY
DEFAULT PARAMETERS
Parts Tray Generator SAMPLE · 120 × 80 mm · h 30 mm · 2 × 3
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
cw
37.67mm
Cell Width (cw)
cd
37.25mm
Cell Depth (cd)
n
6
Cells
in
116 × 76mm
Inner (IW × ID)
HOW-TO How to generate a parts tray STEP file +
  1. Enter outer dimensions, rows, columns, wall/divider thickness, and corner radius
  2. Press the "Generate STEP File" button
  3. The STEP file download will start automatically
  4. Check the 3D preview shown on the download page
Tags
Utility For 3D Printing
Related 3D Generators
Back to Home →
Dice
Dice
Coil Spring
Coil Spring
Box
Box
Aluminum Extrusion
Aluminum Extrusion
Egg
Egg
Stone
Stone
Poop
Poop
Honeycomb Board
Honeycomb Board
Related Calculators
PARAMETERS
Enter Dimensions
8 REQUIRED
20–500 mm
mm

Tray width (X, outer)

20–500 mm
mm

Tray depth (Y, outer)

20–500 mm
mm

Tray height (Z, outer)

1–20

Number of divisions along the width

1–20

Number of divisions along the depth

0.2–40 mm
mm

Outer wall thickness (also the bottom)

0.2–40 mm
mm

Divider plate thickness

0–50 mm
mm

Corner radius of the outer/inner perimeter (0 = sharp)

ABOUT · STEP

The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.

  • Full-scale solid (mm units)
  • Editable dimensions and post-processing in CAD
  • Convertible with a slicer for 3D printing
