Box Generator

Enter outer dimensions, wall thickness, height, and bottom thickness, and generate a STEP file for a box.

🔍 View 3D Preview First
SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
40×40 · t=2 · h=40 mm
BOX
DEFAULT PARAMETERS

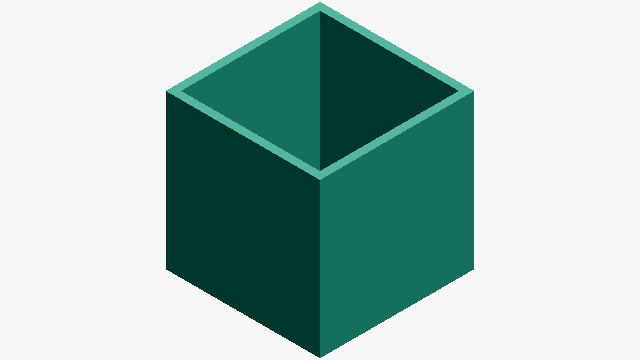

Box Generator SAMPLE · 40 × 40 mm · h 40 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
w_i
36.00mm
Inner Width (IW)
h_i
38.00mm
Inner Height (IH)
S
1600.00mm²
Outer Surface Area
V
49856.00mm³
Volume
HOW-TO How to Generate a Box STEP File +
  1. Enter the outer width, outer depth, wall thickness, height, and bottom thickness
  2. Press the "Generate STEP File" button
  3. The STEP file download will start automatically
  4. Check the 3D preview shown on the download page
