Honeycomb Board Generator

Specify cell size, wall thickness, length, width, and height to generate a honeycomb board STEP file.

🔍 View 3D Preview First
HOW-TO How to Generate a Honeycomb Board STEP File +
  1. Enter the cell size, wall thickness, length, width, and height
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
s=15 · t=2 · 100×100×10
HONEYCOMB BOARD
DEFAULT PARAMETERS

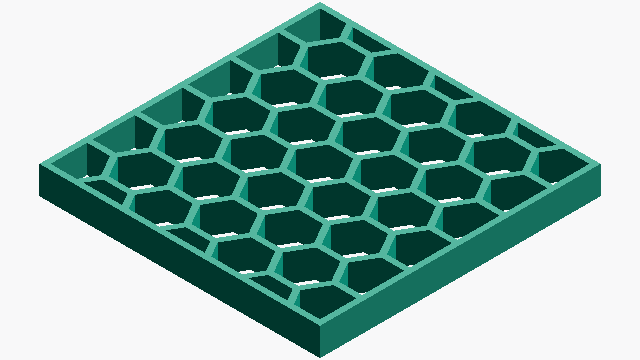

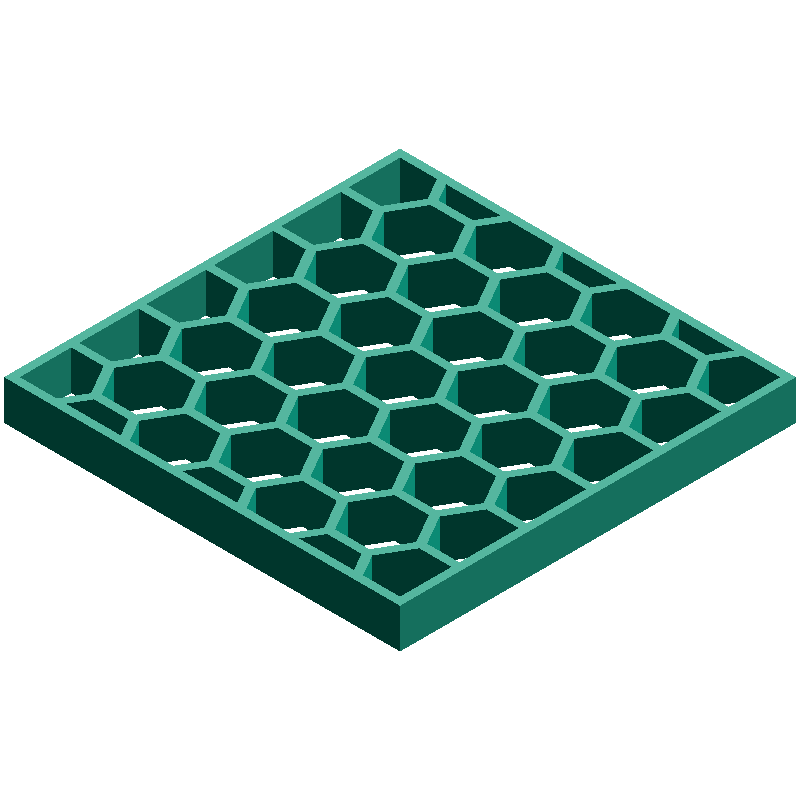

Honeycomb Board Generator SAMPLE · 100 × 100 × 10 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
p
17.0mm
Cell Pitch (mm)
Tags
Utility For 3D Printing
