Poop Generator

Specify the diameter, pitch ratio, and number of turns to generate a poop STEP file.

🔍 View 3D Preview First
HOW-TO How to Generate a Poop STEP File +
  1. Enter the diameter, pitch ratio, and number of coils
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL

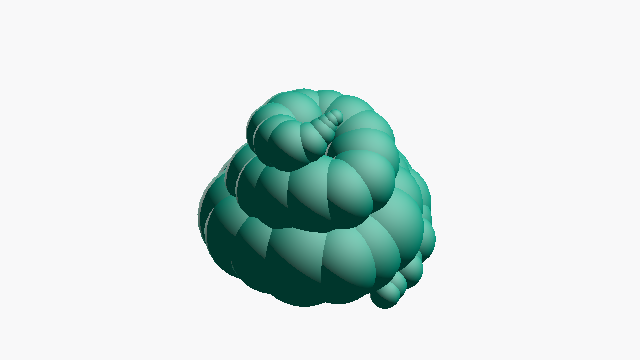

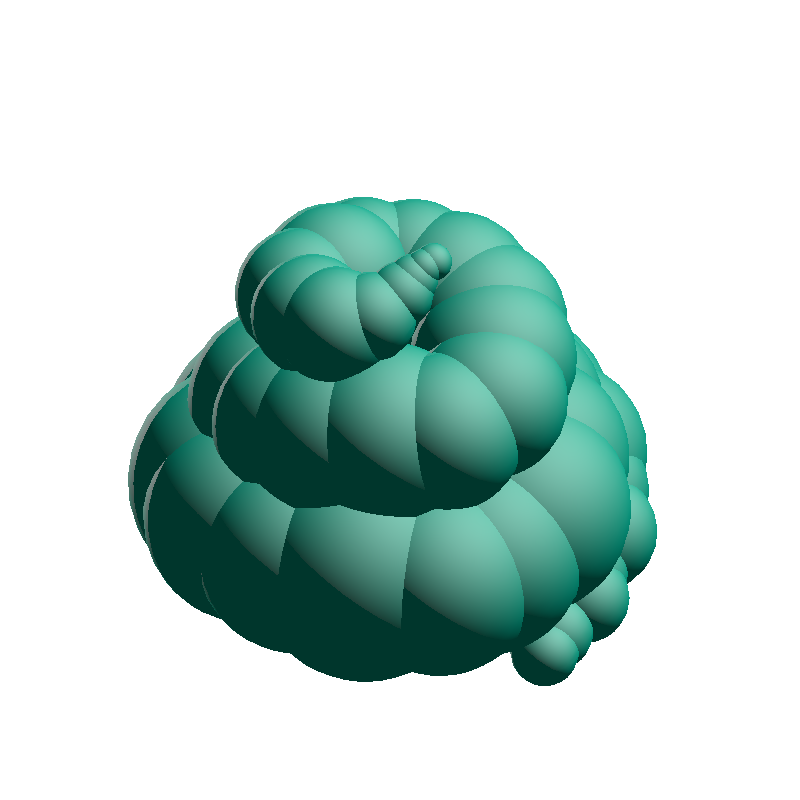

● SAMPLE IMAGE
VIEW · ISO
⌀20 · r=1.25 · t=3 turns
POOP
DEFAULT PARAMETERS
Poop Generator SAMPLE · ⌀ 20 mm · 3 turns
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
p
25.0mm
Pitch (mm/turn)
⌀o
50.0mm
Poop outer diameter
Tags
Utility Organic For 3D Printing
Related 3D Generators
Back to Home →
Stone
Stone
Sai no Kawara
Sai no Kawara
Coil Spring
Coil Spring
Box
Box
Aluminum Extrusion
Aluminum Extrusion
Parts Tray
Parts Tray
Egg
Egg
Wheel
Wheel
Related Calculators
PARAMETERS
Enter Dimensions
3 REQUIRED
2–40 mm
mm

Poop tube diameter

0.45–2 ×
×

Multiplier for the rise per turn relative to tube diameter

2–8 turns
turns

Number of turns

CAUTION

The poop shape generated by this tool is a reference implementation based on estimated values from multiple sources.

ABOUT · STEP

The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.

  • Full-scale solid (mm units)
  • Editable dimensions and post-processing in CAD
  • Convertible with a slicer for 3D printing
