Aluminum Extrusion Generator

Specify profile size, cell count, and length to generate a T-slot aluminum extrusion STEP file.

🔍 View 3D Preview First
SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
2020 · 200 mm
ALUM EXTRUSION
DEFAULT PARAMETERS

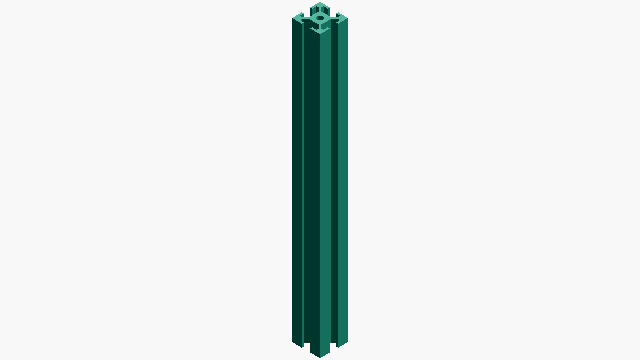

Aluminum Extrusion Generator SAMPLE · 2020 · 200 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
N
2020
Common Name
W×H
20 × 20mm
Cross-Section
g
6.0mm
Slot Opening
HOW-TO How to Generate an Aluminum Extrusion STEP File +
  1. Enter profile size, horizontal cells, vertical cells, and length
  2. Press the "Generate STEP File" button
  3. The STEP file download will start automatically
  4. Check the 3D preview shown on the download page
