Wheel Generator

Generate a STEP file for a 5-spoke solid-tire wheel by specifying outer diameter, tire thickness, width, bore diameter, and edge radius.

Spokes 5 Tire Solid Use Case Robot / AGV
🔍 View 3D Preview First
SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
⌀80 · w 20 mm
WHEEL
DEFAULT PARAMETERS

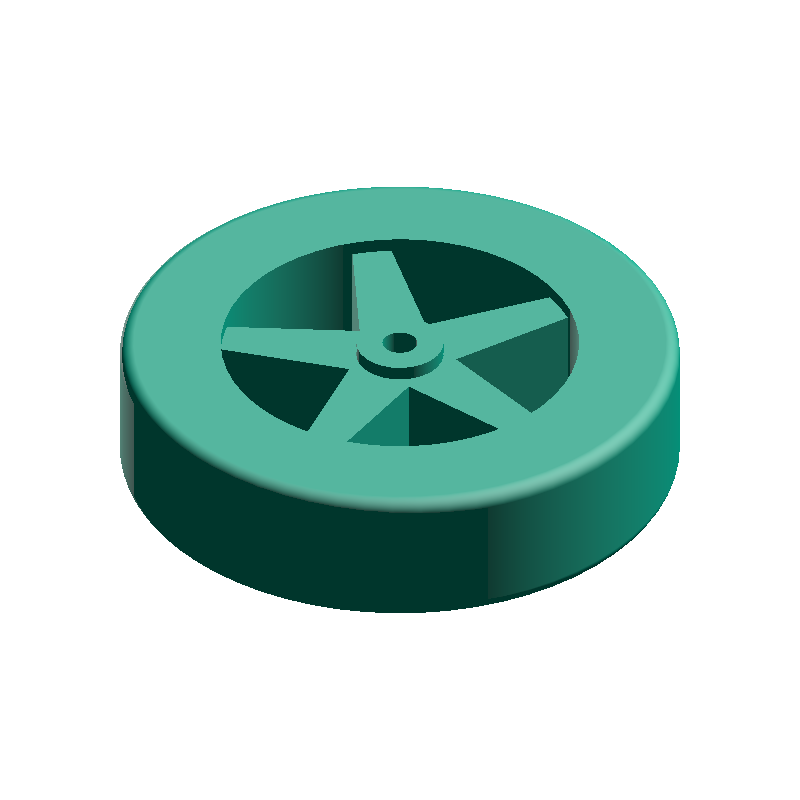

Wheel Generator SAMPLE · ⌀ 80 mm · w 20 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
D_r
64.00mm
Rim Outer Diameter (D_r)
D_h
12.50mm
Hub Diameter (D_h)
t_s
18.00mm
Spoke Thickness (t_s)
HOW-TO How to Generate a Wheel STEP File +
  1. Enter outer diameter, tire thickness, width, bore diameter, and edge radius
  2. Press the "Generate STEP File" button
  3. The STEP file download will start automatically
  4. Check the 3D preview shown on the download page
Tags
Utility Power Transmission For 3D Printing
Related 3D Generators
Back to Home →
Poop
Poop
Box
Box
Honeycomb Board
Honeycomb Board
Dice
Dice
Coil Spring
Coil Spring
Egg
Egg
Aluminum Extrusion
Aluminum Extrusion
Stone
Stone
Related Calculators
PARAMETERS
Enter Dimensions
6 REQUIRED
30–500 mm
mm

Overall wheel diameter including tire

2–50 mm
mm

Tire layer thickness (one side)

5–400 mm
mm

Total wheel width (tire, rim, and hub)

1–100 mm
mm

Center shaft hole diameter

0–20 mm
mm

Corner radius of outer tire cross-section (0 = sharp)

Separate Tire Output

For multi-material printing or assembly. Outputs Tire and WheelBody as two bodies in one file

ABOUT · STEP

The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.

  • Full-scale solid (mm units)
  • Editable dimensions and post-processing in CAD
  • Convertible with a slicer for 3D printing
