Dice Generator

Generate a STEP file of a die by specifying edge length, corner radius, and pip size.

🔍 View 3D Preview First
HOW-TO How to Generate a Dice STEP File +
  1. Enter the edge length, corner radius, and pip size
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
16 mm · r=5% · pip=6.2%
DICE
DEFAULT PARAMETERS

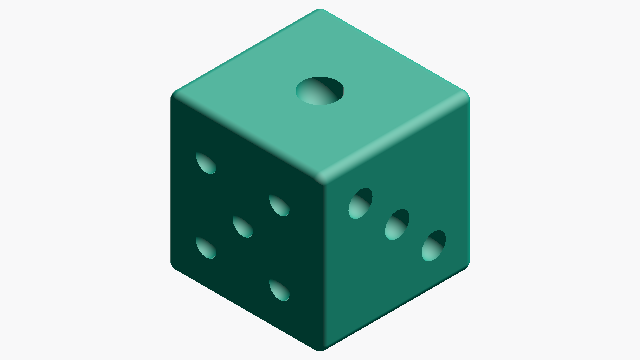

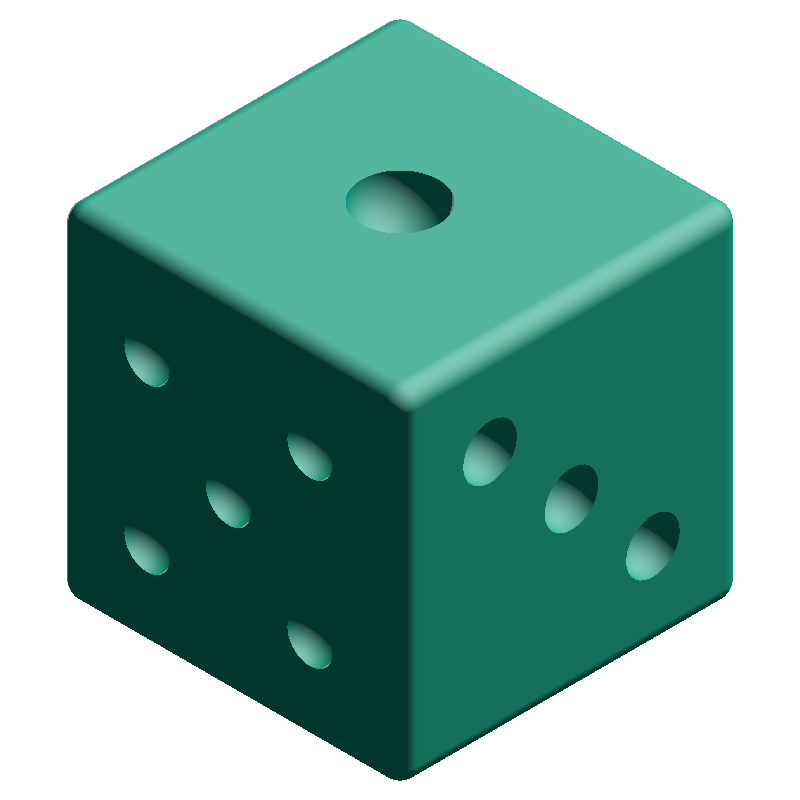

Dice Generator SAMPLE · 16 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
rc
0.80mm
Corner Radius
r₆
0.99mm
Pip Radius (face 6)
r₁
1.80mm
Pip Radius (face 1)
dp
0.99mm
Pip Depth
