Coil Spring Generator

Generate a STEP file of a coil spring by specifying wire diameter, outer diameter, number of turns, and pitch.

🔍 View 3D Preview First
HOW-TO How to Generate a Coil Spring STEP File +
  1. Enter the wire diameter, outer diameter, number of coils, and pitch
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
⌀8 · d=1 · 5 turns
SPRING
DEFAULT PARAMETERS

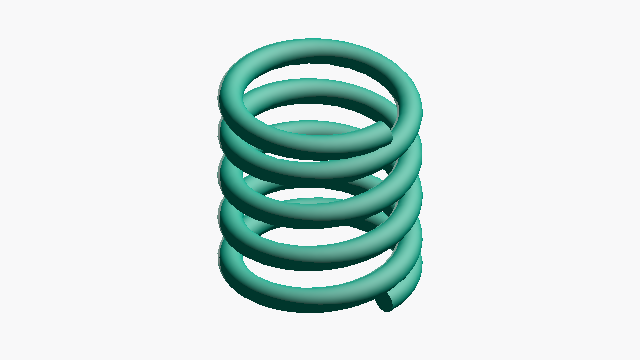

Coil Spring Generator SAMPLE · ⌀ 8 mm · 5 turns

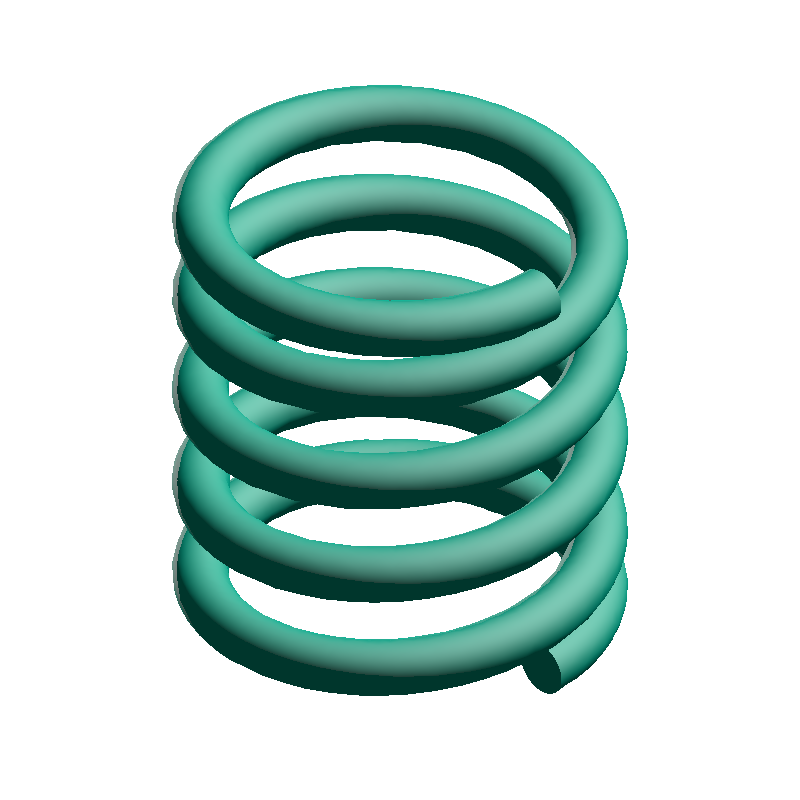

This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
Di
6.00mm
Inner Diameter
H
8.00mm
Coil Height
Tags
Utility For 3D Printing
Related 3D Generators
Back to Home →
Honeycomb Board
Honeycomb Board
Parts Tray
Parts Tray
Aluminum Extrusion
Aluminum Extrusion
Stone
Stone
Dice
Dice
Box
Box
Egg
Egg
Wheel
Wheel
Related Calculators
PARAMETERS
Enter Dimensions
5 REQUIRED
0.5–10 mm
mm

Wire thickness

3–200 mm
mm

Coil outer diameter (greater than wire diameter)

3–50 turns
turns

Total number of coils (in 0.5 increments)

0.5–100 mm
mm

Distance between adjacent coil centers (≥ wire diameter)

End Coil Shape

Checked: end coils are flattened (closed end)

ABOUT · STEP

The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.

  • Full-scale solid (mm units)
  • Editable dimensions and post-processing in CAD
  • Convertible with a slicer for 3D printing

Generating 3D model...
