GT2 Pulley Generator

Enter number of teeth, face width, bore diameter, and flange settings to generate a STEP file for a GT2 timing pulley.

Tooth Form GT2 Pitch 2mm Application Timing Belt Drive
🔍 View 3D Preview First
SAMPLE
STATIC · DEFAULT-VALUE MODEL

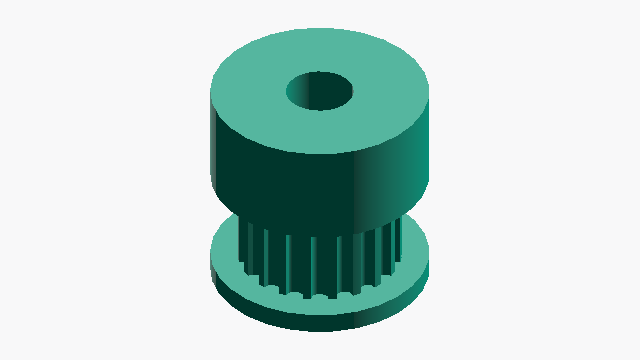

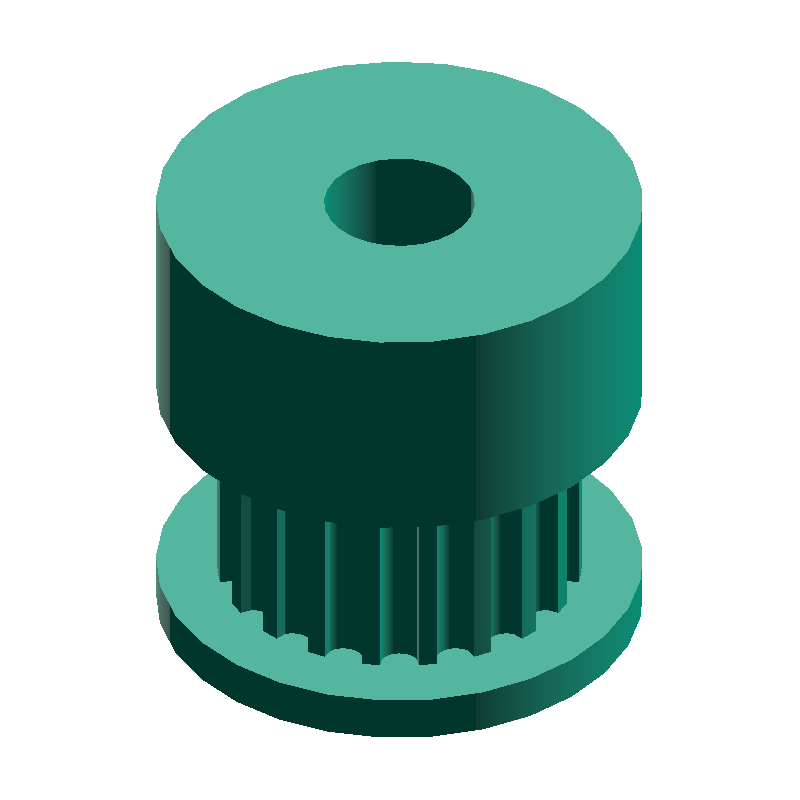

● SAMPLE IMAGE
VIEW · ISO
z=20 · w=7 mm
GT2 PULLEY
DEFAULT PARAMETERS
GT2 Pulley Generator SAMPLE · z 20 · w 7 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
pd
12.73mm
Pitch Diameter (PD)
od
12.13mm
Outside Diameter (OD)
fd
16.13mm
Flange Diameter
HOW-TO How to Generate a GT2 Pulley STEP File +
  1. Enter the number of teeth, belt width, bore diameter, and flange settings
  2. Press the "Generate STEP File" button
  3. The STEP file download will start automatically
  4. Check the 3D preview shown on the download page
Tags
Pulley Power Transmission
Related 3D Generators
Back to Home →
GT2 Timing Belt
GT2 Timing Belt
Bevel Gear
Bevel Gear
Spur Gear
Spur Gear
Worm Gear
Worm Gear
Worm Wheel
Worm Wheel
Wheel
Wheel
Rack Gear
Rack Gear
Sprocket
Sprocket
Related Calculators
PARAMETERS
Enter Dimensions
6 REQUIRED
16–120 teeth
teeth

Number of pulley teeth

3–20 mm
mm

Match to timing belt width

0–100 mm
mm

Diameter of the center bore (0 = no bore)

Flange or pulley boss to prevent belt slipping

CAUTION

The GT2 pulleys generated by this tool are reference implementations using estimated values from multiple sources.

ABOUT · STEP

The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.

  • Full-scale solid (mm units)
  • Editable dimensions and post-processing in CAD
  • Convertible with a slicer for 3D printing
