Spur Gear Generator

Enter module, number of teeth, bore diameter, and face width to generate a STEP file for a spur gear.

Pressure Angle 20° Backlash None Tooth Form Involute
🔍 View 3D Preview First
HOW-TO How to Generate a Spur Gear STEP File +
  1. Enter the module, number of teeth, bore diameter, and face width
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually

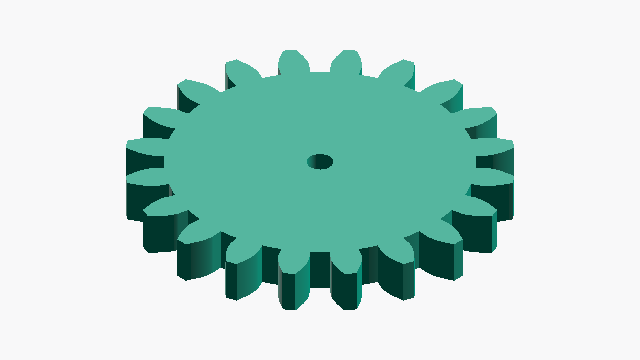

SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
m=2 · z=20
SPUR GEAR
DEFAULT PARAMETERS
Spur Gear Generator SAMPLE · ⌀ 44 mm · b 5 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
D
40.00mm
Pitch Diameter
Da
44.00mm
Tip Diameter
Df
35.00mm
Root Diameter
p
6.283mm
Tooth Pitch
