Sprocket Generator

Specify chain number, number of teeth, sprocket type, and bore diameter to generate a STEP file for a roller chain sprocket.

Standard JIS B 1801:2020 / JIS B 1802-1989 Application Roller Chain Drive
🔍 View 3D Preview First

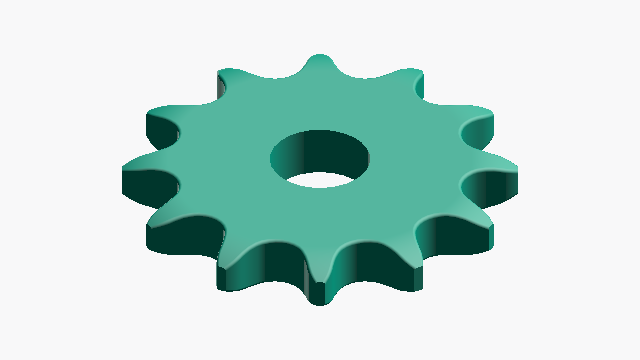

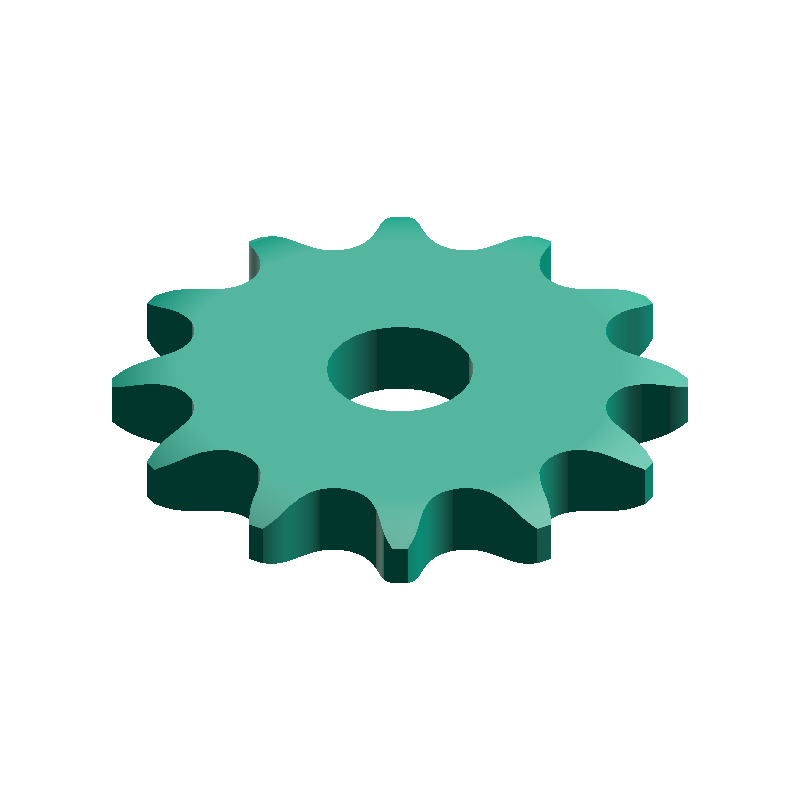

SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
#40 · z=12 · bore=14
SPROCKET
DEFAULT PARAMETERS
Sprocket Generator SAMPLE · #40 · z 12
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
Dp
49.07mm
Pitch Diameter (Dp)
Df
41.12mm
Root Diameter (DB)
Da
57.02mm
Tip Diameter (Do)
HOW-TO How to Generate a Sprocket STEP File +
  1. Enter the chain number, number of teeth, sprocket shape, and bore diameter
  2. Press the "Generate STEP File" button
  3. The STEP file download will start automatically
  4. Check the 3D preview shown on the download page
Tags
Sprocket Power Transmission
Related 3D Generators
Back to Home →
Wheel
Wheel
Deep Groove Ball Bearing
Deep Groove Ball Bearing
Double Helical Gear
Double Helical Gear
Spur Gear
Spur Gear
Worm Gear
Worm Gear
GT2 Pulley
GT2 Pulley
Helical Gear
Helical Gear
GT2 Timing Belt
GT2 Timing Belt
Related Calculators
PARAMETERS
Enter Dimensions
4 REQUIRED

Select standard chain per JIS B 1802-1989

9–40 teeth
teeth

Number of sprocket teeth

Select hub configuration (A: plate, B: one-side hub, C: both-side hub)

0–100 mm
mm

Diameter of the center bore (0 = no bore)

CAUTION

The sprockets generated by this tool are reference implementations based on JIS B 1802-1989. For precision applications, verification with actual roller chains is recommended.

ABOUT · STEP

The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.

  • Full-scale solid (mm units)
  • Editable dimensions and post-processing in CAD
  • Convertible with a slicer for 3D printing
