Worm Wheel Generator

Enter module, number of teeth, worm shaft diameter, worm starts, helix direction, and bore diameter to generate a STEP file for a worm wheel (disk side).

Pressure Angle 20° Tooth Form Worm Envelope Section Use Worm Power Transmission
🔍 View 3D Preview First
HOW-TO How to Generate a Worm Wheel STEP File +
  1. Enter the module, number of teeth, worm shaft diameter, worm starts, helix direction, and bore diameter
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL

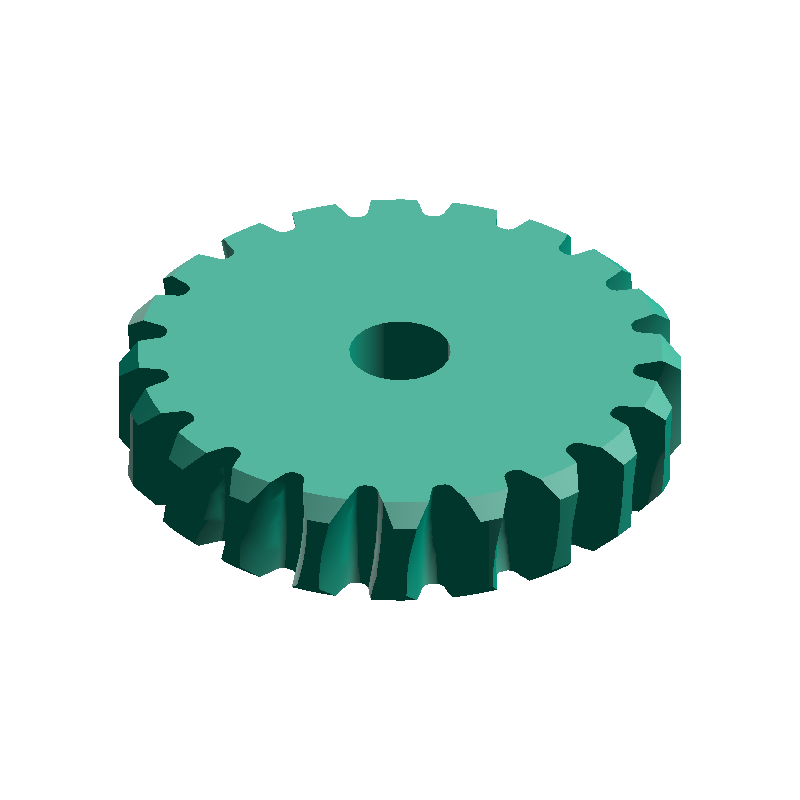

● SAMPLE IMAGE
VIEW · ISO
m=2 · z=20 · ⌀dw20 · nw=1
WORM WHEEL
DEFAULT PARAMETERS
Worm Wheel Generator SAMPLE · m=2 · z=20 · dw20
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
β
5.74deg
Helix Angle
mt
2.01mm
Transverse Module
dp
40.20mm
Pitch Diameter
da
44.20mm
Disk Diameter
df
35.18mm
Approx. Root Diameter
Tags
Gear Power Transmission For 3D Printing
Related 3D Generators
Back to Home →
Spur Gear
Spur Gear
Double Helical Gear
Double Helical Gear
Bevel Gear
Bevel Gear
Worm Gear
Worm Gear
Rack Gear
Rack Gear
Helical Gear
Helical Gear
Wheel
Wheel
GT2 Pulley
GT2 Pulley
Related Calculators
Related articles
Side-by-side comparison of two rack gears with different modules (module 1.0 / 3.0)
Gear Module Explained — How to Choose the Right Module for 3D Printing and DIY
2026-05-27
PARAMETERS
Enter Dimensions
6 REQUIRED
0.5–4 mm
mm

Same normal module as the corresponding worm gear

16–40 teeth
teeth

Number of teeth on the wheel

5–100 mm
mm

Shaft diameter (pitch diameter) of the corresponding worm gear

1–3 starts
starts

Number of helical threads of the corresponding worm gear

0–100 mm
mm

Diameter of the center bore (0 = no bore)

Helix Direction

Match the helix direction of the corresponding worm gear

CAUTION

The worm wheels generated by this tool are reference implementations based on estimated values from multiple sources. Generation may take up to 60 seconds.

ABOUT · STEP

The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.

  • Full-scale solid (mm units)
  • Editable dimensions and post-processing in CAD
  • Convertible with a slicer for 3D printing

Generating 3D model...
