Double Helical Gear Generator

Enter module, number of teeth, helix angle, bore diameter, and face width to generate a STEP file for a double helical (herringbone) gear.

Pressure Angle 20° (normal) Tooth Trace Central V (herringbone) Tooth Form Involute
🔍 View 3D Preview First
SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
m=2 · z=20 · β=15°
DOUBLE HELICAL GEAR
DEFAULT PARAMETERS

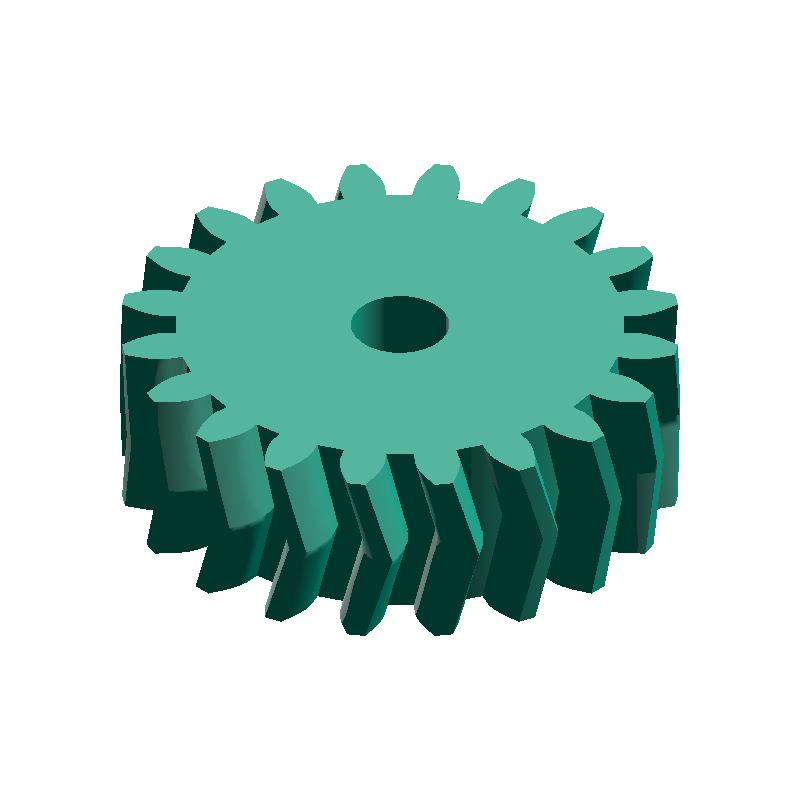

Double Helical Gear Generator SAMPLE · ⌀ 45 mm · β 15° · b 15 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
D
41.41mm
Pitch Diameter (D)
Da
45.41mm
Tip Diameter (Da)
Df
36.41mm
Root Diameter (Df)
L
485.6mm
Lead (L)
HOW-TO How to Generate a Double Helical Gear STEP File +
  1. Enter the module, number of teeth, helix angle, bore diameter, and face width
  2. Press the "Generate STEP File" button
  3. The STEP file download will start automatically
  4. Check the 3D preview shown on the download page
