Socket Head Cap Screw Generator

Enter thread size and length, and generate a STEP file for a socket head cap screw.

Standard JIS B1176-2006 / ISO 4762-2004 Shape Cylindrical Head with Hexagonal Socket Supported Sizes M3–M20 (10 variants)
🔍 View 3D Preview First
HOW-TO How to Generate a Socket Head Cap Screw STEP File +
  1. Enter the thread size and length
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL

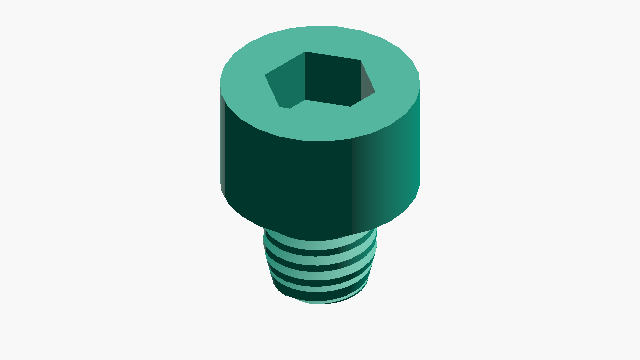

● SAMPLE IMAGE
VIEW · ISO
M3 · L=5 mm
SOCKET HEAD CAP SCREW
DEFAULT PARAMETERS
Socket Head Cap Screw Generator SAMPLE · M3 · L 5 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
P
0.50mm
Pitch
k
3.0mm
Head Height
dk
5.5mm
Head Diameter
s
2.66mm
Hex Socket Width
t
1.30mm
Socket Depth
L
8.0mm
Total Length (k + ℓ)
