Hex Head Screw (UNC / Inch) Generator

Select a UNC designation (e.g., 1/4-20) and length to generate a STEP file for a hexagon head bolt with Unified National Coarse (UNC) inch threads.

Standard ASME B1.1 / ASME B18.2.1 hex cap screw Shape Hexagonal Head Supported Sizes 1/4-20 to 1-8 UNC (10 variants)
🔍 View 3D Preview First
HOW-TO How to Generate a Hex Head Screw (UNC / Inch Thread) STEP File +
  1. Select the UNC designation and length
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL

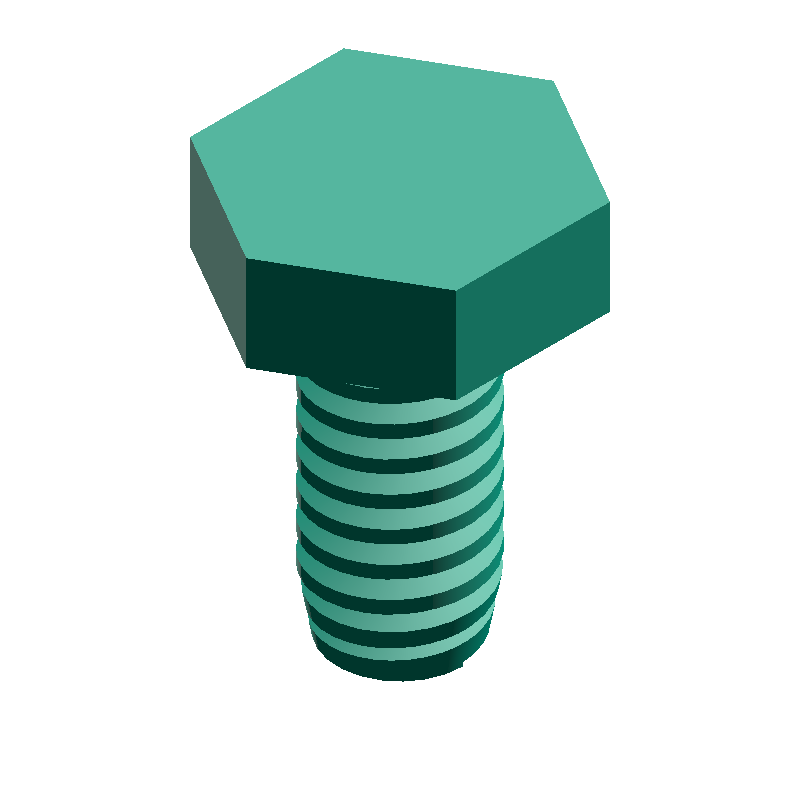

● SAMPLE IMAGE
VIEW · ISO
1/4-20 UNC · L=1/2″
HEXAGON HEAD SCREW UNC
DEFAULT PARAMETERS
Hex Head Screw (UNC / Inch) Generator SAMPLE · 1/4-20 UNC · L 1/2 IN
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
P
1.27mm
Pitch
s
11.11mm
Width across Flats
k
3.97mm
Head Height
L
16.67mm
Total Length (k + ℓ)
