Pan Head Screw Generator

Enter thread size and screw length to generate a STEP file for a pan head screw (with cross recess).

Standard JIS B 1111-2017 / ISO 7045 Shape Pan Head · Cross Recess (H type) Supported Sizes M1.6–M10 (9 variants)
🔍 View 3D Preview First
HOW-TO How to Generate a Pan Head Screw STEP File +
  1. Enter the thread nominal diameter and length
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO

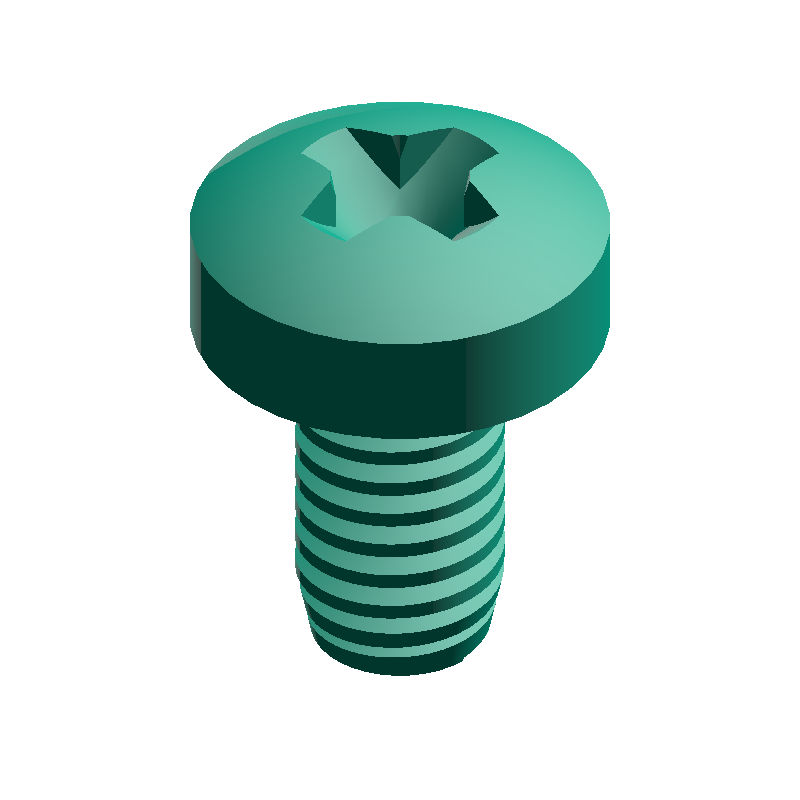

M3 · L=5 mm
PAN HEAD SCREW
DEFAULT PARAMETERS
Pan Head Screw Generator SAMPLE · M3 · L 5 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
P
0.50mm
Pitch
k
2.40mm
Head Height
dk
5.60mm
Head Diameter
rf
5.0mm
Head Sphere Radius
No.
2
Cross Recess No.
L
7.4mm
Total Length (k + ℓ)
