Square Pipe Generator

Enter outer dimensions, wall thickness, and length, and generate a STEP file for a square pipe.

🔍 View 3D Preview First
SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
40×40 · t=2 · L=100 mm
SQUARE PIPE
DEFAULT PARAMETERS

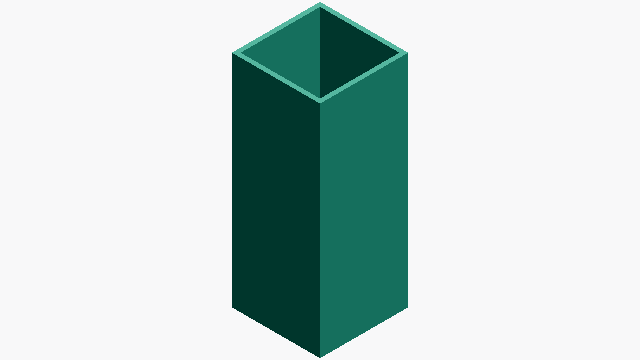

Square Pipe Generator SAMPLE · 40 × 40 mm · L 100 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
w_i
36.00mm
Inner Width (IW)
A
304.00mm²
Cross-sectional Area (A)
V
30400.00mm³
Volume (V)
HOW-TO How to Generate a Square Pipe STEP File +
  1. Enter the outer dimensions (width and height), wall thickness, and length
  2. Press the "Generate STEP File" button
  3. The STEP file download will start automatically
  4. Check the 3D preview shown on the download page
