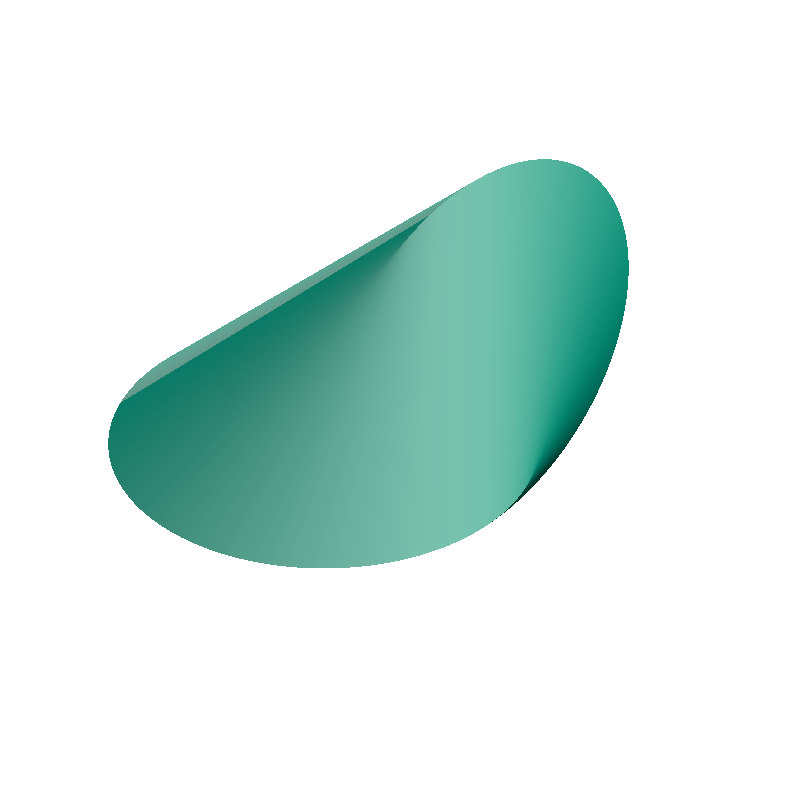

Oloid Generator
Enter a diameter and generate a STEP file for an oloid.
SAMPLE
STATIC · DEFAULT-VALUE MODEL
CALCULATED · SPEC
AUTO-COMPUTED
r
30.00mm
Radius (r)
S
11309.73mm²
Surface Area (S)
Y
90.00mm
Longest Dimension (Y axis)
HOW-TO How to Generate an Oloid STEP File +
- Enter the diameter
- Click "Download STEP File" or "Preview STEP Model"
- If you selected "Download STEP File", the STEP file will be saved automatically
- If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
PARAMETERS
Enter Dimensions
ABOUT · STEP
The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.
- Full-scale solid (mm units)
- Editable dimensions and post-processing in CAD
- Convertible with a slicer for 3D printing
