Round Pipe Generator

Enter outer diameter, wall thickness, and length, and generate a STEP file for a round pipe.

🔍 View 3D Preview First
SAMPLE
STATIC · DEFAULT-VALUE MODEL

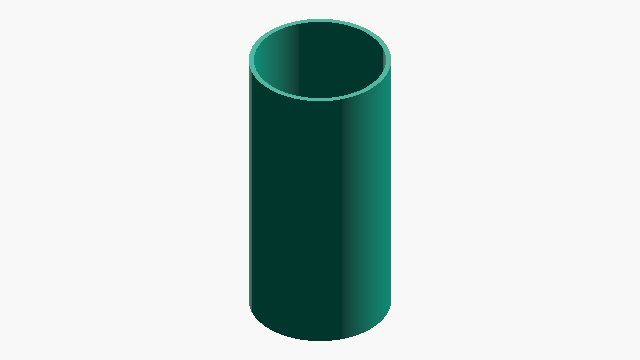

● SAMPLE IMAGE
VIEW · ISO
⌀48.6 · t=1.8 · L=100 mm
ROUND PIPE
DEFAULT PARAMETERS
Round Pipe Generator SAMPLE · ⌀ 48.6 mm · L 100 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
di
45.00mm
Inner Diameter (ID)
A
264.62mm²
Cross-sectional Area (A)
V
26462.00mm³
Volume (V)
HOW-TO How to Generate a Round Pipe STEP File +
  1. Enter the outer diameter, wall thickness, and length
  2. Press the "Generate STEP File" button
  3. The STEP file download will start automatically
  4. Check the 3D preview shown on the download page
Tags
Pipe For 3D Printing
Related 3D Generators
Back to Home →
Square Pipe
Square Pipe
Honeycomb Board
Honeycomb Board
Worm Gear
Worm Gear
Stone
Stone
Cone
Cone
Helical Gear
Helical Gear
Box
Box
Parts Tray
Parts Tray
Related Calculators
PARAMETERS
Enter Dimensions
3 REQUIRED
1–1000 mm
mm

Outer diameter of the pipe

0.1–500 mm
mm

Wall thickness (ID = OD - 2×thickness)

1–5000 mm
mm

Pipe length

ABOUT · STEP

The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.

  • Full-scale solid (mm units)
  • Editable dimensions and post-processing in CAD
  • Convertible with a slicer for 3D printing
