Cylinder Generator

Enter diameter and height, and generate a STEP file for a cylinder.

🔍 View 3D Preview First
HOW-TO How to Generate a Cylinder STEP File +
  1. Enter the diameter and height
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL

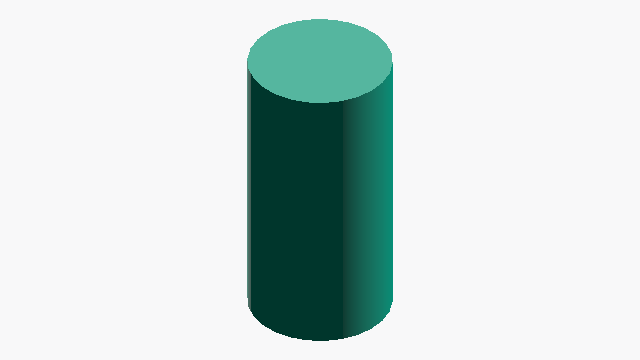

● SAMPLE IMAGE
VIEW · ISO
⌀10 · h 20 mm
CYLINDER
DEFAULT PARAMETERS
Cylinder Generator SAMPLE · ⌀ 10 mm · h 20 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
r
5.00mm
Radius
S
785.40mm²
Total Surface Area
V
1570.80mm³
Volume
Tags
Basic Shape For 3D Printing
Related 3D Generators
Back to Home →
Oloid
Oloid
Cone
Cone
Hemisphere
Hemisphere
Box
Box
Cuboid
Cuboid
Torus
Torus
Möbius Strip
Möbius Strip
Sphere
Sphere
Related Calculators
PARAMETERS
Enter Dimensions
2 REQUIRED
0.1–1000 mm
mm

Cylinder diameter

0.1–1000 mm
mm

Cylinder height

ABOUT · STEP

The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.

  • Full-scale solid (mm units)
  • Editable dimensions and post-processing in CAD
  • Convertible with a slicer for 3D printing
