Cuboid Generator

Enter length, width, and height, and generate a STEP file for a cuboid.

🔍 View 3D Preview First
HOW-TO How to Generate a Cuboid STEP File +
  1. Enter the length, width, and height
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL

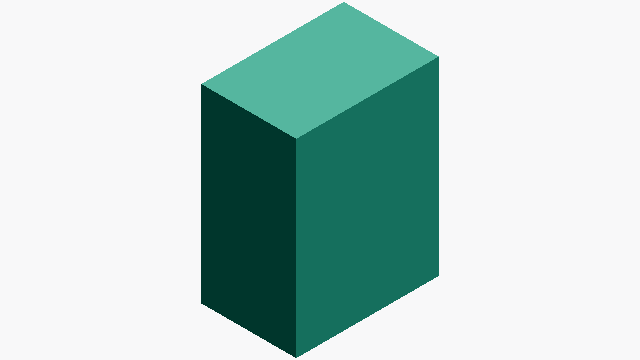

● SAMPLE IMAGE
VIEW · ISO
10 × 15 × 20 mm
CUBOID
DEFAULT PARAMETERS
Cuboid Generator SAMPLE · 10 × 15 × 20 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
S
1300.00mm²
Surface Area
V
3000.00mm³
Volume
d
26.93mm
Diagonal Length
Tags
Basic Shape For 3D Printing
Related 3D Generators
Back to Home →
Cylinder
Cylinder
Hemisphere
Hemisphere
Cone
Cone
Oloid
Oloid
Box
Box
Möbius Strip
Möbius Strip
Torus
Torus
Sphere
Sphere
Related Calculators
PARAMETERS
Enter Dimensions
3 REQUIRED
0.1–1000 mm
mm

X-direction length

0.1–1000 mm
mm

Y-direction width

0.1–1000 mm
mm

Z-direction height

Cylinder
Cylinder
Cone
Cone
Box
Box
Sai no Kawara
Sai no Kawara
ABOUT · STEP

The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.

  • Full-scale solid (mm units)
  • Editable dimensions and post-processing in CAD
  • Convertible with a slicer for 3D printing
