Canvas Generator

Specify size number and type (F, P, M, S) to generate a STEP file of a painting canvas (wooden frame and fabric).

Dimensions Japanese Size Shape Frame + Fabric Size Range No. 0–150 (incl. SM)
🔍 View 3D Preview First
HOW-TO How to Generate a Canvas STEP File +
  1. Select size number and type (F, P, M, S)
  2. Calculated values update in real time as parameters change
  3. Click "Download STEP File" or "Preview STEP Model"
  4. If you selected "Download STEP File", the STEP file will be saved automatically
  5. If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually
SAMPLE
STATIC · DEFAULT-VALUE MODEL
● SAMPLE IMAGE
VIEW · ISO
10号 · F · 530×455 mm
CANVAS
DEFAULT PARAMETERS

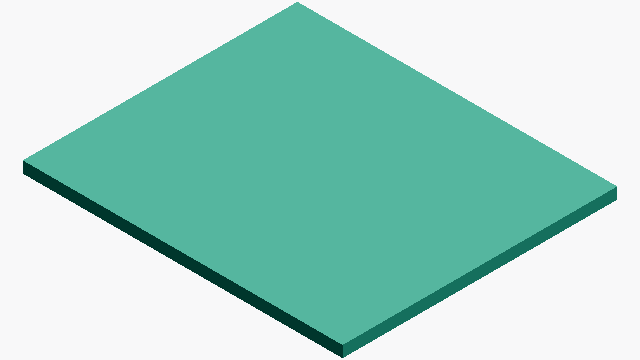

Canvas Generator SAMPLE · 10号 F · 530 × 455 mm
This is a sample image. After generating, view the actual model in 3D preview. 3D Preview →
CALCULATED · SPEC
AUTO-COMPUTED
W×H
530 × 455mm
Dimensions (W × H)
