PARAMETRIC · 3D · STEP
Torus Generator
Enter major and minor diameter, and generate a STEP file for a torus.
HOW-TO How to Generate a Torus STEP File +
- Enter the major diameter and minor diameter
- Calculated values update in real time as parameters change
- Click "Download STEP File" or "Preview STEP Model"
- If you selected "Download STEP File", the STEP file will be saved automatically
- If you selected "Preview STEP Model", check the 3D model, then click "Download STEP File" manually

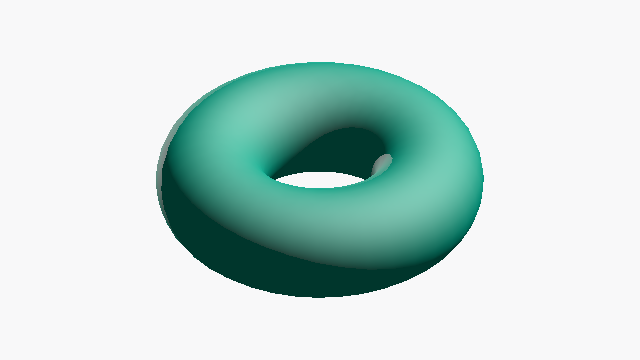

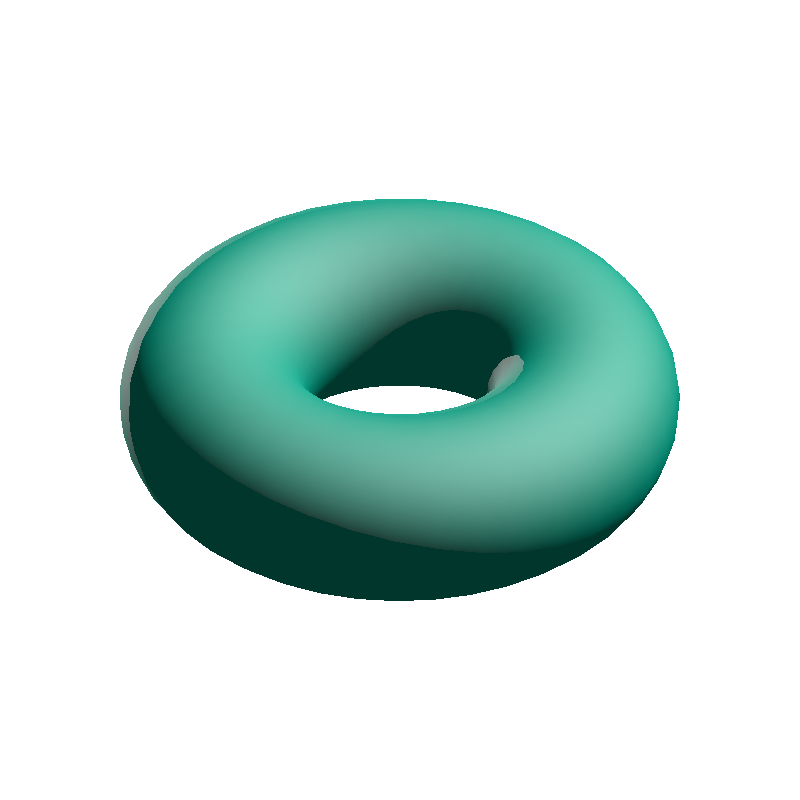

SAMPLE
STATIC · DEFAULT-VALUE MODEL
CALCULATED · SPEC
AUTO-COMPUTED
R
10.00mm
Major Radius
r
5.00mm
Minor Radius
V
4934.80mm³
Volume
S
1973.92mm²
Surface Area
PARAMETERS
Enter Dimensions
SPONSORED
Useful products for makers
- Digital Caliper Measuring Tool(opens the Amazon page in a new tab)
- SUNLU PLA 3D Printer Filament(opens the Amazon page in a new tab)
- Bambu Lab A1 mini(opens the Amazon page in a new tab)
- Bambu Lab P2S Combo(opens the Amazon page in a new tab)
As an Amazon Associate, meta-matic earns from qualifying purchases.
ABOUT · STEP
The STEP file (.step / .stp) is a standard 3D CAD format that retains dimensional and topology data. Compatible with major CAD software including Fusion 360, SolidWorks, and FreeCAD.
- Full-scale solid (mm units)
- Editable dimensions and post-processing in CAD
- Convertible with a slicer for 3D printing
