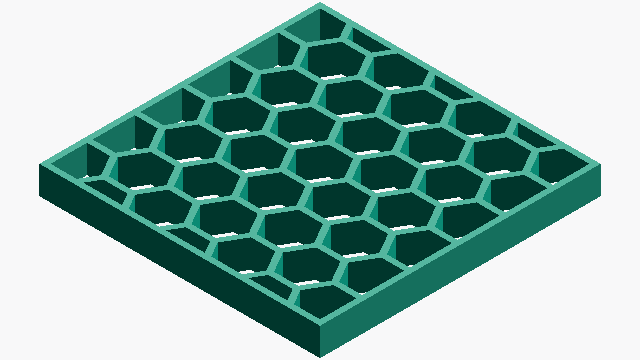

Honeycomb Board Generator

Specify cell size, wall thickness, length, width, and height to generate a honeycomb board STEP file.

Cell Size (s)

Flat-to-flat width of hexagonal cell (10–50mm)

Wall Thickness (t)

Thickness of walls between cells (1–5mm)

Length (L)

Overall size in Y direction (10–300mm)

Width (W)

Overall size in X direction (10–300mm)

Height (H)

Board thickness in Z direction (1–50mm)

Cell Pitch (mm)

17.0 mm
