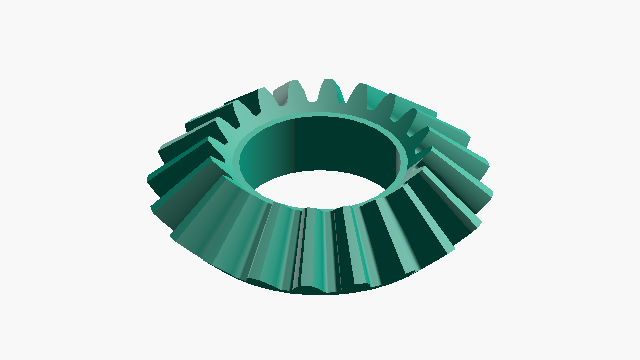

Bevel Gear Generator

Enter module, teeth, face width, bore diameter, and output gear selection to generate a STEP file for a bevel gear.

Pressure Angle 20° Backlash None Axes Angle 90°

Module (m)

Basic unit determining tooth size

Large Gear Teeth (z1)

teeth

Number of large gear teeth (12–30 teeth, z1 ≥ z2)

Small Gear Teeth (z2)

teeth

Number of small gear teeth (12–30 teeth, z2 ≤ z1)

Face Width (b)

Axial thickness of the gear (face width)

Bore Diameter (d)

Diameter of the center bore (0 = no bore)

Output Gear

Select which gear to generate

Calculated Values

Reference Sphere Radius (r0)	— mm
Pitch Cone Angle (γp1)	— deg
Pitch Cone Angle (γp2)	— deg
Outer Pitch Circle Diameter (d1)	— mm
Outer Pitch Circle Diameter (d2)	— mm

⚠️ Important Notice

The bevel gears generated by this tool are reference implementations based on estimated values from multiple sources. Generation may take up to 120 seconds.
